BLAUPUNKT 90CM INDUCTION COOKTOP/BUILT-IN EXTRACTION (BLACK)

Upgrade your kitchen with Blaupunkt's innovative induction hob and extractor fan combination. The hob features 4 powerful induction zones with booster capabilities and advanced settings like Cooking Chef Mode, bridging functions, and precise temperature controls. The extractor fan ensures efficient and quiet air purification with up to 730 m³/h airflow in extraction mode and 560 m³/h in circulation mode. Designed for durability and ease of use, this unit is perfect for modern kitchens, offering sleek aesthetics, energy efficiency, and exceptional performance.

Key Features & Benefits

Outstanding Performance:

• Hob Voltage: Operates at 220–240 V with a total connected load of 8.8 kW.
• Induction Cooking Zones: Features 4 zones (Ø 22 cm) with a power rating of 2.1 kW (boosted to 3.7 kW).
• Extractor Fan Voltage: Operates at 220–240 V with a total connected load of 165 W.

Efficient Air Extraction:

• Fan Output:
  • Extraction Mode: Max normal level 580 m³/h; Intensive level 730 m³/h.
  • Circulation Mode: Max normal level 450 m³/h; Intensive level 560 m³/h.
• Energy Consumption: Average 30.8 kWh/year.
• Noise Levels: Ranges from 45 dB(A) at minimum to 70 dB(A) at maximum (intensive).

Advanced Design & Comfort:

• Hob Features:
  • Frameless design with black glass ceramic finish.
  • Touch Control with Smart Slider and 10 power levels.
  • Boost function for all induction zones.
  • Specialized modes: Toggle (40 °C, 70 °C, 98 °C), Cooking Chef, Pause, and Recall.
  • Safety Features: Residual heat display, pot detection, child lock, and timer.
  • Convenient bridging function for combining zones.
  • Flush-mounted installation capability.
• Extractor Fan Features:
  • Electronic opening mechanism with Touch Control and LED display.
  • 6 fan levels (5 normal + 1 intensive) with automatic reset in extraction mode.
  • Overrun blower with 5/10/20-minute timer.
  • Dishwasher-safe metallic grease filter and LED saturation indicator.
  • Water collection tank with a 0.75 L capacity.
  • Automatic safety lock after 40 hours of operation.

Durable & Practical Construction:

• Hob Material: Black glass ceramic for durability and a sleek look.
• Extractor Compatibility: Designed for installation in kitchenettes or islands, with optional extraction or circulation modes (carbon filter required for circulation).
• Metallic Filters: Dishwasher-safe and easy to clean.

Specifications:

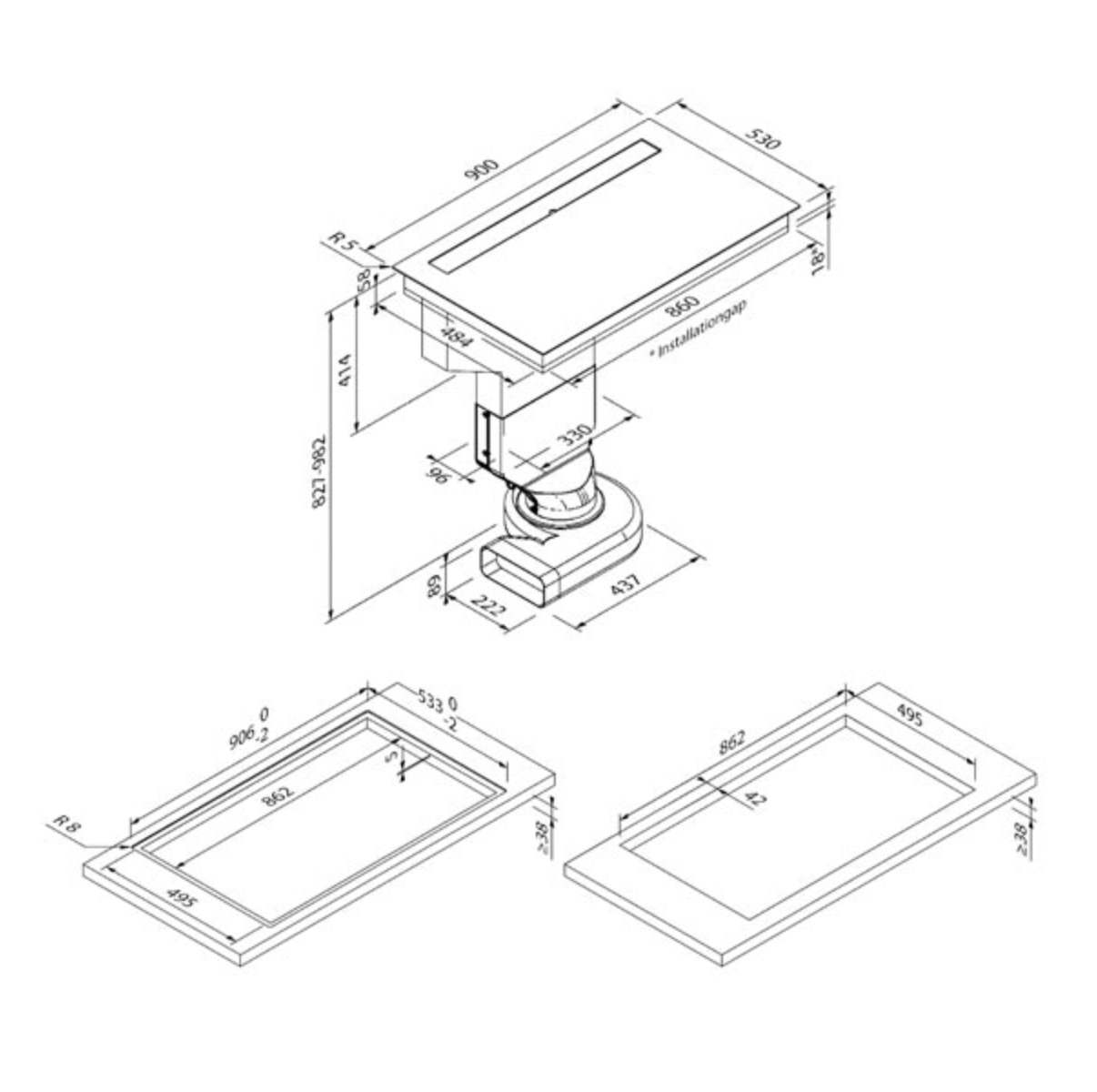

• Hob Dimensions (H × W × D): 82.7–98.2 × 90 × 53 cm.
• Installation Dimensions (H × W × D): 5.8 × 86.2 × 49.5 cm.
• Planning Information:
  • Minimum cabinet width: 900 mm.
  • Minimum base height: 100 mm.
  • Minimum worktop depth: 600 mm.
  • Air outlet/exhaust duct located to the left.
